DURAMESH Sizing

Duramesh™ comes in 4 sizes: 2-0, 0, Number 1, & Number 2. DURAMESH™ is used in the same instances as an equivalently sized suture.

Standard Suture Size Equivalent DURAMESH Size
2-0 DURAMESH 2-0
0 DURAMESH 0
1 DURAMESH 1
2 DURAMESH 2

Duramesh™ 0, Number 1, & Number 2 have either a small needle to fit through a laparoscopic/robotic trocar, or a large needle for open surgery. Duramesh™ 2-0 has a small needle.

Duramesh™ is used in the same instances as an equivalently sized suture. See the table below for sizing and dimensions.

DURAMESH Size Inner Diameter (mm) Average Outer Diameter (mm) Average Width when Flattened (mm) Average Depth when Flattened (mm)
2-011.512.320.26
022.593.630.29
13.43.935.300.25
255.527.810.28

DURAMESH Packaging

Each box contains one Duramesh™. Each Duramesh™ is packaged within a sterile protective medical grade outer tube. The sterile protective tube is fixed to a sterile card. The sterile needle is located underneath a protective needle flap, with the sharp tip stuck into a piece of protective foam, covered by a folded piece of medical grade paperboard. For further information, please consult the IFU.

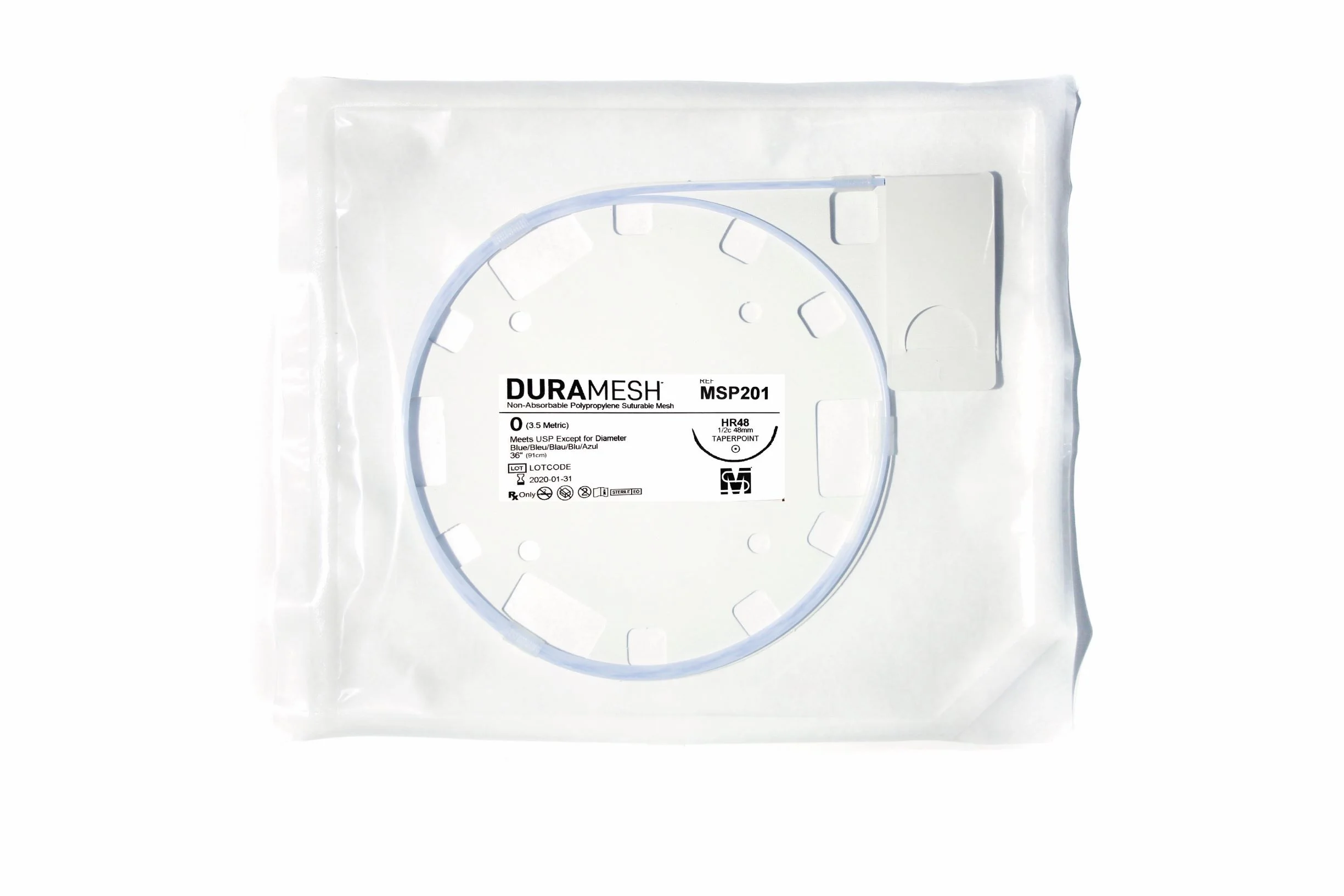

DURAMESH 2-0 & 0

MSP201 Packaging.jpg

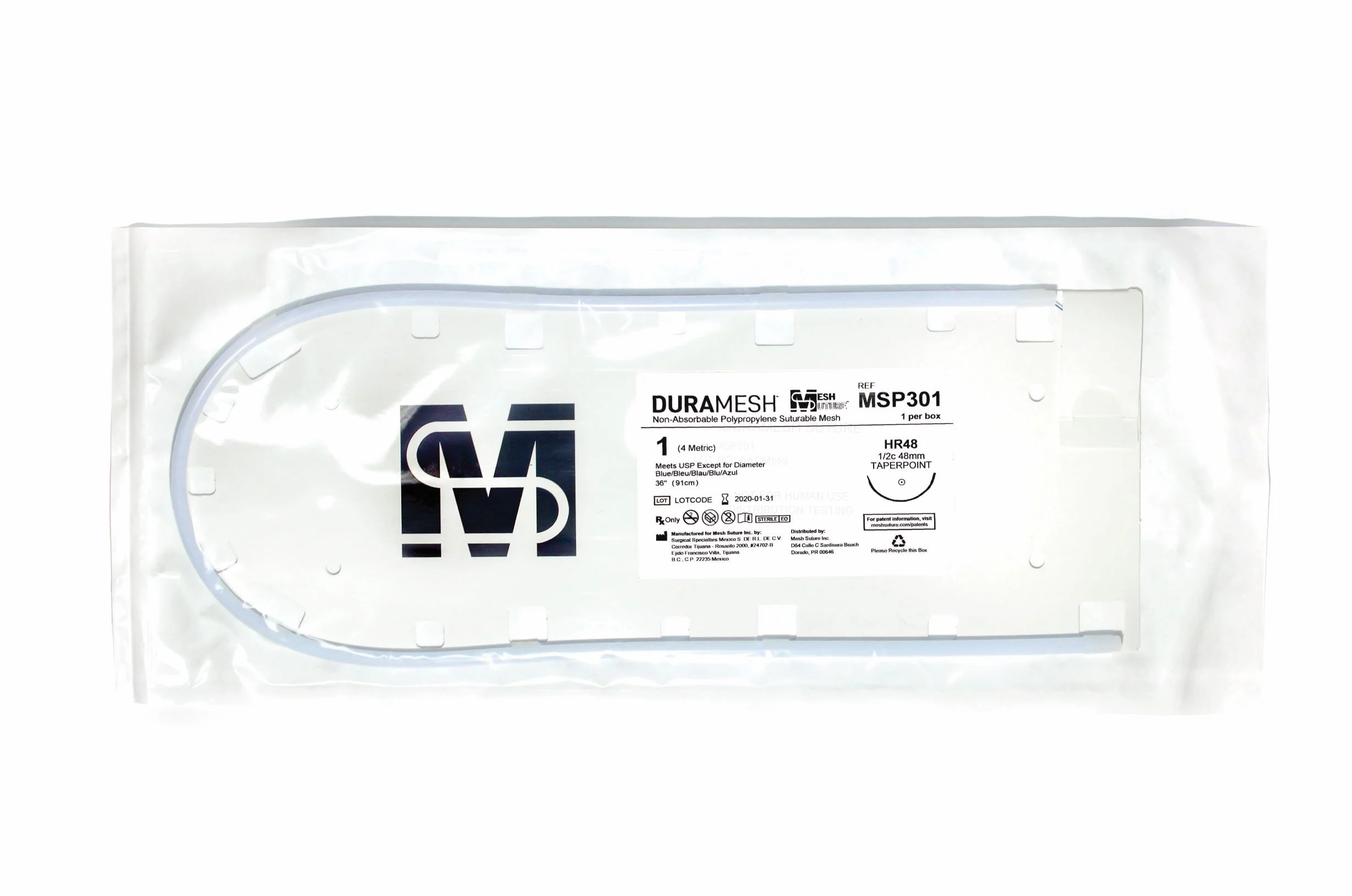

DURAMESH 1 & 2

MSP301 Packaging (2).jpg
